FIRELITE® Transport – Ultra High Pressure 160 Gallon

FIRELITE® Transport – Ultra High Pressure 160 Gallon

Built to last, our line of FIRELITE^® Transport skid units are made for budget minded departments. These capable, no nonsense wild land firefighting skid units will get the job done, are low profile and can also have a rescue capability.

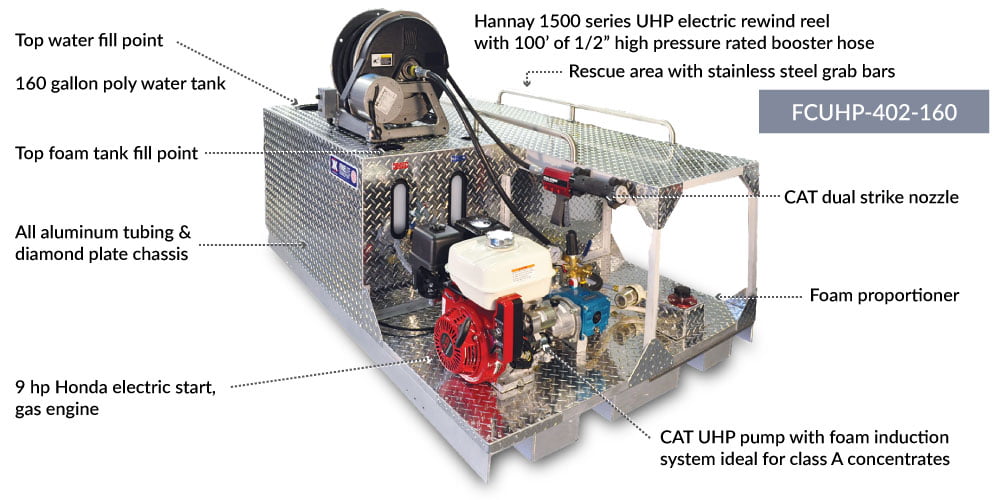

The FCUHP-400 Series 401, 402 and 403 deluxe model fire slip on units come complete with a CAT ultra-high pressure pump. Included is the electric rewind Hannay 1500 UHP series reel and a CAT pump class A foam system with an integrated 5 gallon foam cell!

The FIRELITE® Transport will surely fulfill your brush truck fire apparatus needs. Be sure to check out the options page for more customization of your FIRELITE® Transport FCUHP skid unit!

Specifications

• All aluminum construction with bright aluminum diamond plate and aluminum tubing sub-frame
• Features all stainless steel piping and 1/4 turn brass valves
• Unit comes complete with the CAT UHP pump with foam induction system ideal for Class A Concentrates
• Injection percentage from 0.5% – 6.0%
• 9 HP Honda gas engine with electric start
  • 9 HP pump flows: 6.7 GPM @ 1200 PSI
• 160 gallon poly water tank with integrated 5 gallon foam cell and baffles – limited lifetime warranty
• Pre-connected 1500 Series Hannay Electric Reel® with 100′ of 1/2″ UHP hose with CAT dual strike nozzle that delivers water or foam solution
• 2- 48″ x 1″ stainless steel grab rails at rescue area for mounting a stokes basket or long board
• 10- 24″ long Velcro D Loop Straps Included

Add-On Options

Add rear attack line tray (dead lay) to hold approximately 150’ of 1.5” line for the length of the unit. One long tool holder box length of skid unit with a full length door opening to the side of the unit (off passenger side) for easy access.

Add a 4’ rear attack line tray (pre-connect) to hold booster line and one open toolbox holder to carry long tools with holder for long board on passenger side of skid unit.

*Optional high roller also shown

Add custom built rear attack line tray (pre-connect) the length of the skid unit to hold approximately 150’ of 1.5” line. Second rear attack line tray (dead lay) length of the bed to hold approximately 150’ of 2.5” line.

Add rear attack line tray (pre-connect) to hold approximately 150’ of 1.5” line for the length of the unit. One long tool holder box length of skid unit with a full length door opening to the side of the unit (off passenger side) for easy access.

Add lower roller off driver’s side of truck, high roller off passenger side.
