UNIT SHIPS FULLY ASSEMBLED
FIRELITE® – Ultra High Pressure 200 Gallon
Base Price
$13,685.00
Model: FCUHP-406-200
Dimensions: 48”W x 94”L x 45”H
- 200 Gallon Poly Water Tank With Integrated 5 Gallon Foam Cell
- CAT UHP Pump With Foam Induction System
- Injection Percentage From 0.5% - 6.0%
- 9 HP Honda Gas Engine With Electric Start
- 1500 Series Hannay Electric Reel® - Pre-Connected
- Shipping Is Not Included In The Base Price
Product Description
Specifications
Options
Media
Fit Guide
Product Description
FIRELITE® – Ultra High Pressure 200 Gallon
Model: FCUHP-406-200
Built to last, our line of FIRELITE® skid units are made for budget minded departments. These capable, no nonsense wild land firefighting skid units will get the job done, are low profile and can also have a rescue capability.
The FCUHP-400 Series 404, 405 and 406 basic model fire slip on units come with a CAT ultra-high pressure pump. Included is the electric rewind Hannay 1500 UHP series reel and a CAT pump class A foam system with an integrated 5 gallon foam cell!
The FIRELITE® will surely fulfill your brush truck fire apparatus needs.
Specifications
Specifications

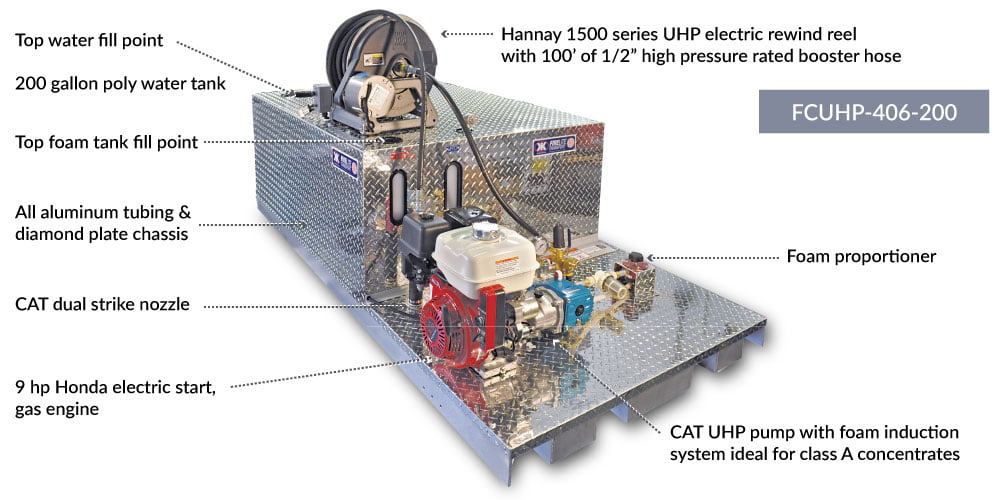

- All aluminum construction with bright aluminum diamond plate and aluminum tubing sub-frame
- Features all stainless steel piping and 1/4 turn brass valves
- Unit comes complete with the CAT UHP pump with foam induction system ideal for Class A Concentrates
- Injection percentage from 0.5% – 6.0%
- 9 HP Honda gas engine with electric start
- 9 HP pump flows: 6.7 GPM @ 1200 PSI
- 200 gallon poly water tank with integrated 5 gallon foam cell and baffles – limited lifetime warranty
- Pre-connected 1500 Series Hannay Electric Reel® with 100′ of 1/2″ UHP hose with CAT dual strike nozzle that delivers water or foam solution
