FIRELITE® Transport Deluxe

FIRELITE® Transport Deluxe

Built to last, our line of affordable FIRELITE^® Transport skid units are capable, no-nonsense, and will help you get your wildland firefighting jobs done. These versatile skids also have rescue capabilities. Now with many options available! Call for details.

Weight and height varies according to skid unit. Some UTV models do not have the proper weight carrying capacity in the cargo bed area. For safety reasons, before buying your new UTV, please call for details, we are here to help.

Specifications

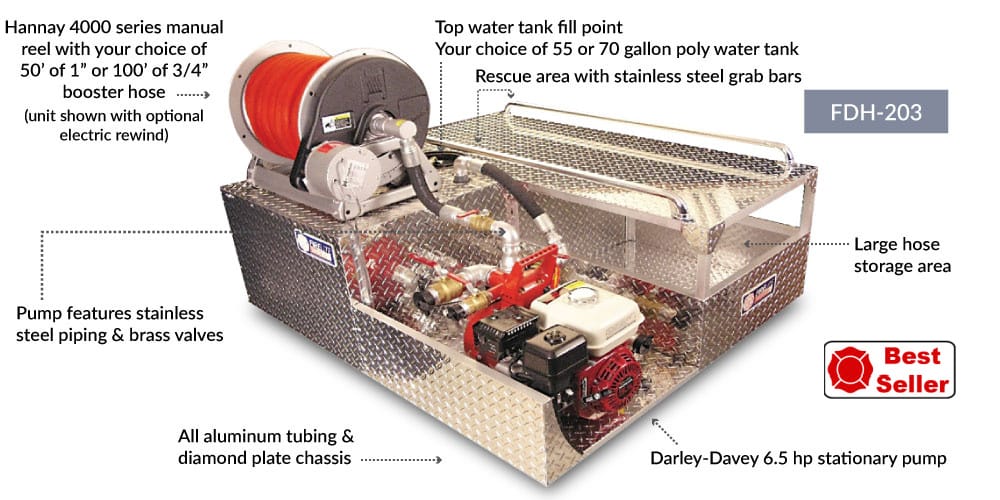

• Integrated 55 or 70-gallon poly water tank.
• All aluminum construction with bright aluminum diamond plate.
• Hose bed storage section for hard suction, forestry hose, nozzles, etc.
• Pump features all stainless steel piping & brass valves (pump is stationary-does not remove from skid unit).
• Unit comes complete with the Darley-Davey® Two-Stage High-Pressure Pump: Twin impeller, gas-driven pump powered by a manual recoil 6.5 HP Honda engine able to self-prime to 19′; Nitrile rubber seal & casing “O” rings; Low oil protection; One Year Pump Warranty; Two Year Engine Warranty.
• Flows 65 GPM @ 48 PSI; 50 GPM @ 81 PSI; 20 GPM @ 120 PSI
• Comes with 1 gated 1-1/2″ discharge; 1 gated 1″ discharge; 1 gated 1″ pump to tank refill; 1 gated 1″ to booster reel; 1 gated 1-1/2″ auxiliary suction; 1 gated 1-1/2″ tank to pump.
• Tank Mounted pre-connected F4000 Series Hannay Reel® Manual Crank with 100′ of 3/4″ or 50′ of 1″ Boostlite Booster Hose.
• Around the pump 1-1/2″ line with shut off for water pack refill.
• Water tank sight gauge.
• 2- 48″ x 1″ grab rails at rescue area for mounting a stokes basket or long board.
• 10 – 24″ long Velcro D Loop Straps Included.

Add-On Options

Scotty Through-the-Pump Foam System w/5 Gal. Foam Cell

$735.00

Mercedes Draftlite Kit

$420.00

Viper Nozzle

$315.00

Removable Hose Tray / Long Tool Holder Box for Rescue Area

$785*

Tray offers brackets and holes for holding rakes/long tools, open area for holding equipment, approximately 4” x 6” hose bed for holding forestry hose.

Please Note: Adds approximately 55 lbs, please keep in mind when researching cargo bed capacities of UTVS. *Currently offered on new units only – has to be ordered at time of initial order.

Media

Fit Guide

UTV models that are compatible. Don’t see yours? Contact us for assistance.
