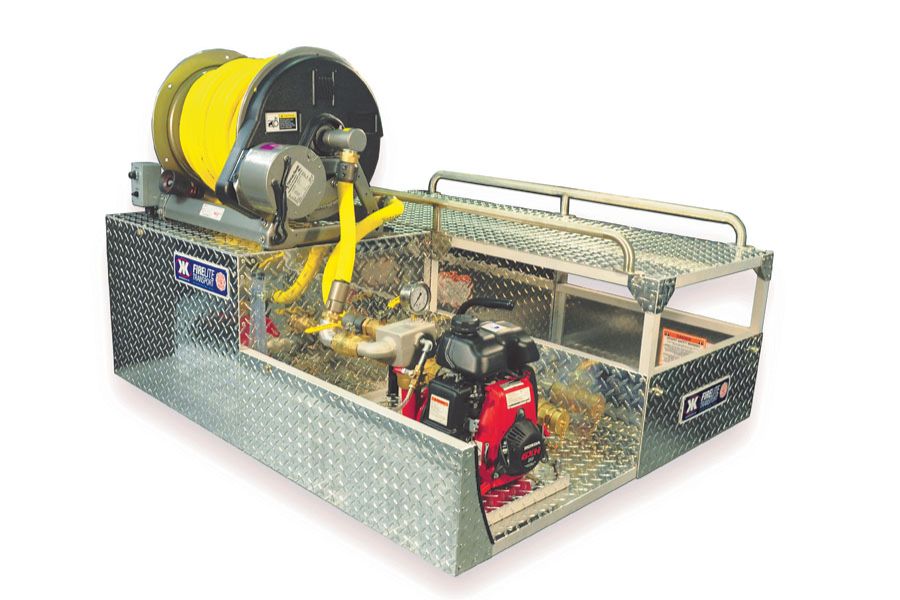

FIRELITE® Transport Mercedes Hannay

FIRELITE® Transport Mercedes Hannay

Built to last, our line of FIRELITE^® Transport skid units are made for budget-minded departments. These capable, no-nonsense wildland firefighting skid units will get the job done, are low profile, and also have a rescue capability. Now available with several options. Give us a call for more details!

• Mercedes Pump
• Poly Water Tank
• Hannay Reel
• Rescue Area

Weight and height varies according to skid unit. Some UTV models do not have the proper weight carrying capacity in the cargo bed area. For safety reasons, before buying your new UTV, please call us first, we are here to help.

Specifications

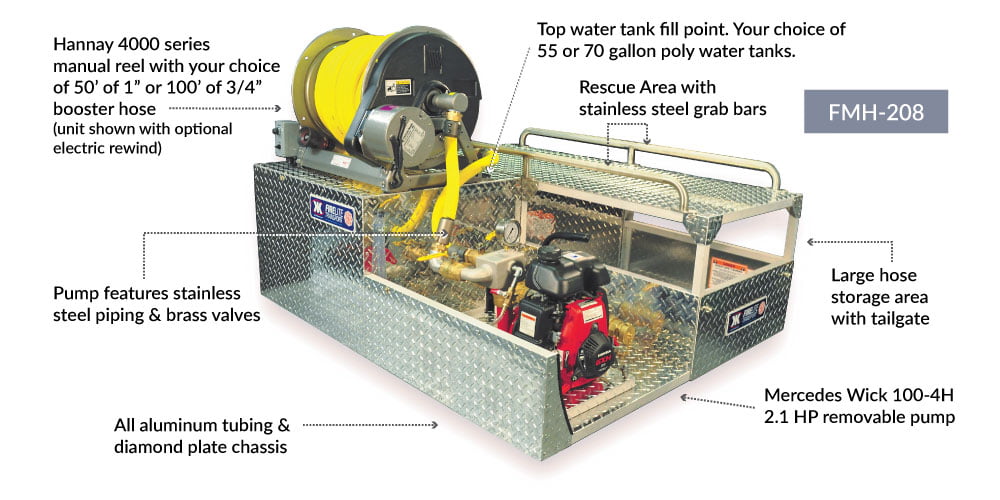

• All aluminum construction with bright aluminum diamond plate
• Hose bed storage section for hard suction, forestry hose, nozzles etc
• Pump features all stainless steel piping & brass valves with aluminum cam locks to make pump removable from skid unit

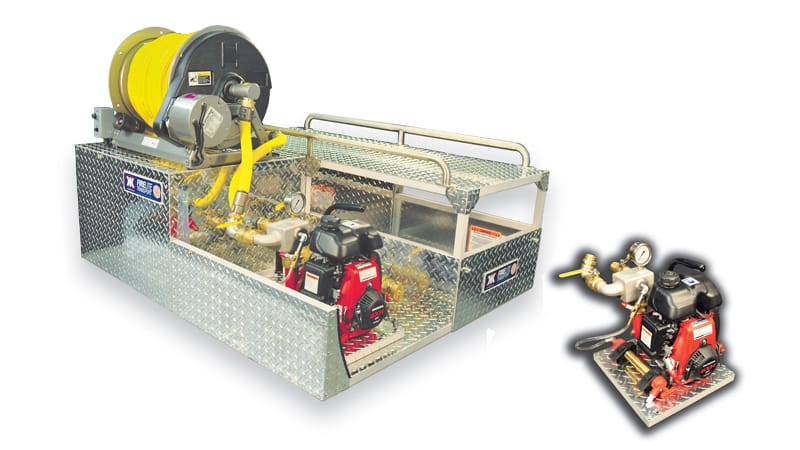

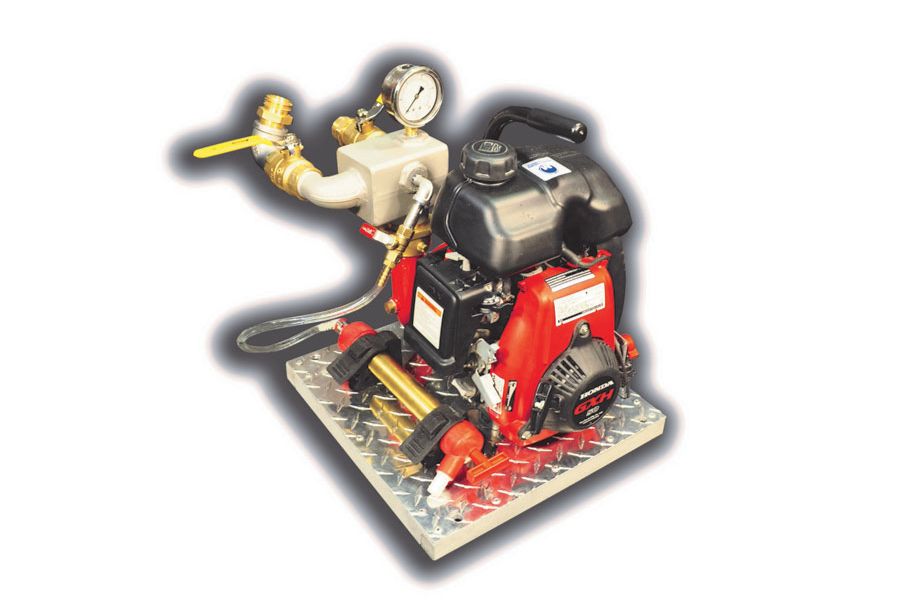

• Unit comes complete with the removable Mercedes Wick 100-4H, gas driven pump powered by a manual recoil 2.1 HP Honda engine; Low oil protection
• Flows 65 GPM @ 15 PSI; 50 GPM @ 35 PSI; 20 GPM @ 70 PSI
• Comes with 2 gated 1″ discharges (when pump is removed); 1 gated 1″ pump to tank refill; 1 gated 1″ to booster reel (when pump is mounted); 1 gated 1-1/2″ auxiliary suction; 1 gated 1-1/2″ tank to pump
• Integrated 55 or 70 gallon poly water tank
• Tank Mounted pre-connected F4000 Series Hannay Reel® Manual Crank with 100′ of 3/4″ or 50′ of 1″ Boostlite Booster Hose
• Around the pump 1-1/2″ line with shut off for water pack refill
• Water tank sight gauge
• 2- 48″ x 1″ grab rails at rescue area for mounting a stokes basket or long board
• 10 – 24″ long Velcro D Loop Straps Included

Add-On Options

Scotty Through-The-Pump Foam System W/5 Gal. Foam Cell

$735.00

Mercedes Draftlite Kit

$420.00

Viper Nozzle With Pistol Grip & Bale

$315

Removable Hose Tray / Long Tool Holder Box for Rescue Area

$785*

Tray offers brackets and holes for holding rakes/long tools, open area for holding equipment, approximately 4” x 6” hose bed for holding forestry hose.

Please Note: Adds approximately 55 lbs, please keep in mind when researching cargo bed capacities of UTVS. *Currently offered on new units only – has to be ordered at time of initial order.

Pump Backpack Transport System

$265
