FIRELITE® Transport – 125 Gallons

FIRELITE® Transport – 125 Gallons

An affordable, all-inclusive quality skid – slip on unit is what makes our FIRELITE^® Transport FDHP-301-125 series slip on unit is a popular choice for budget minded fire departments. The FIRELITE can create a brush truck out of a department owned pickup truck or flatbed in a short period of time for a great price!

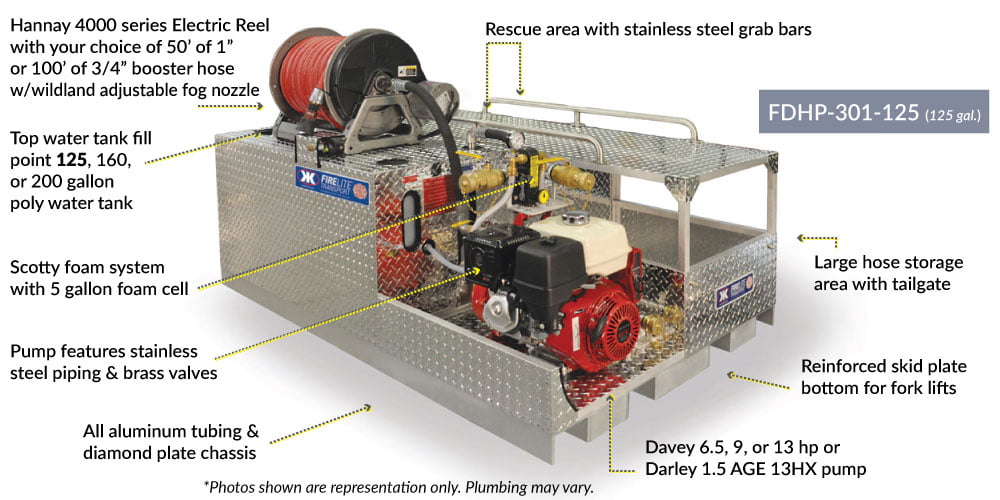

ALL FDHP-300 series brush truck skid units are delivered all set up with an Electric Hannay 4000 series reel with your choice of 100ft of ¾” or 50ft of 1″ booster hose with wildland adjustable fog nozzle; A Scotty 4171 Through-the-Pump Foam System with integrated 5 gallon foam cell; Patient Rescue area; Hose storage area; Darley-Davey Pump with Commercial Grade Honda or Briggs & Stratton OHV Vanguard Motor; all stainless steel plumbing with ¼ turn brass valves.

You can further customize your FIRELITE® Transport to fit your department’s needs! See our options section for more details.

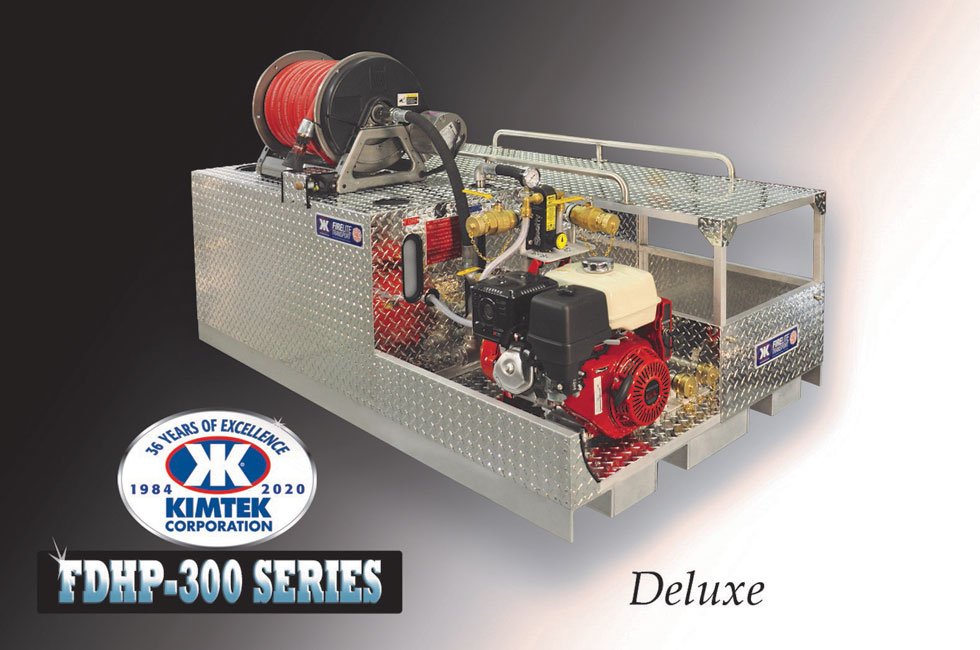

When it comes to off-road wildland firefighting, the FDHP-300 series slip on skid units get the job done. Designed to be low profile, compact with a low center of gravity, they can even carry a patient with a rescue capability that is included in each base unit. All units have the ability to draft up to 19 feet with an initial prime.

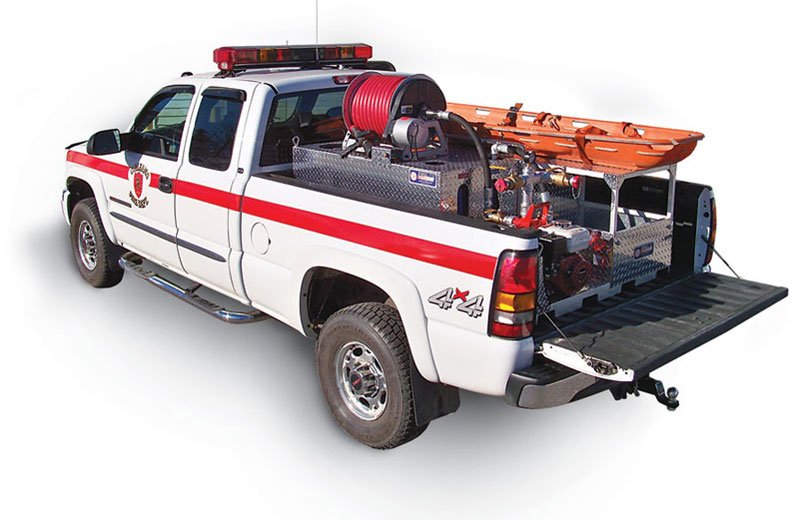

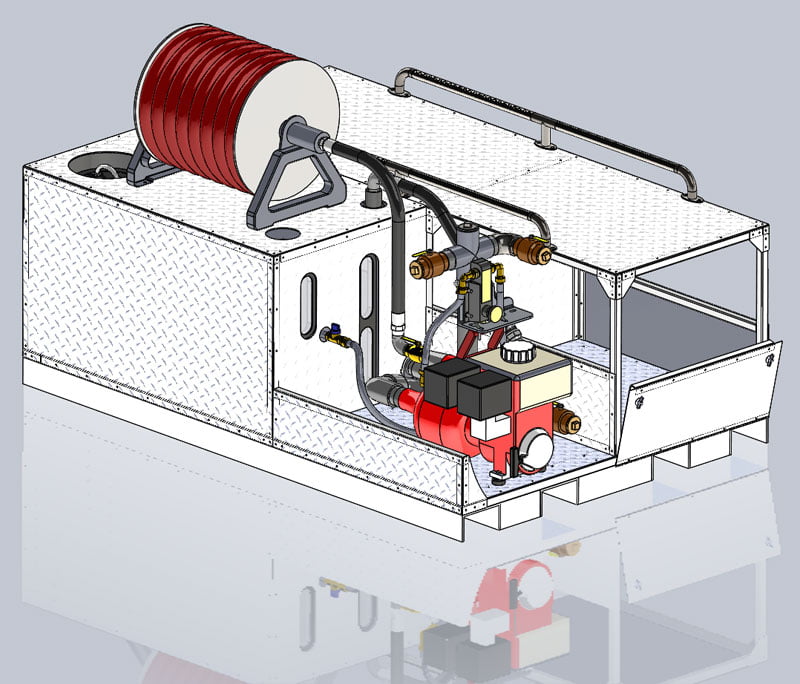

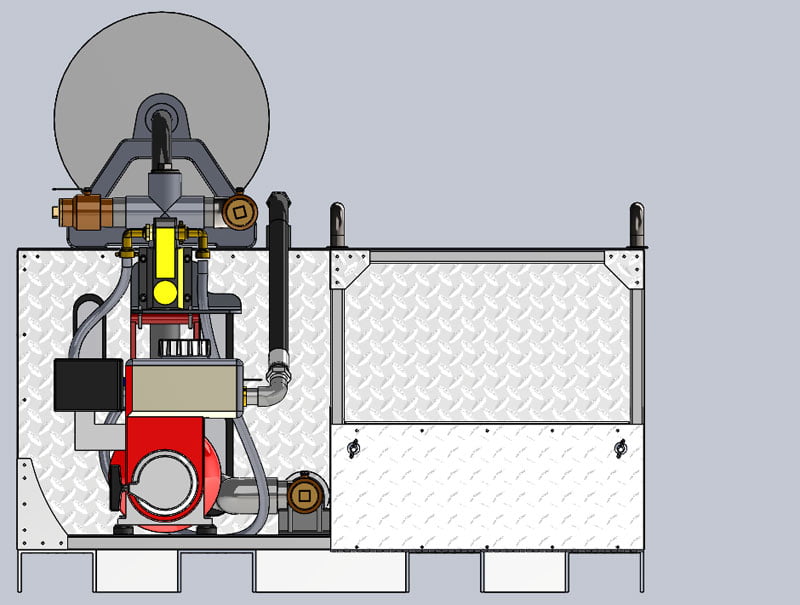

The FIRELITE^® Transport FDHP-301-125 series slip on skid unit for wildland brush fires comes with a 125 gallon baffled water tank built to NFPA standards. The 125 gallon forestry unit is a special built compact skid unit made specifically for short bed 6.5 foot pickup trucks or flatbed trucks.

Specifications

• All aluminum construction with bright aluminum diamond plate and aluminum tubing sub-frame
• Hose bed storage section with tail gate for storing hard suction, forestry hose, nozzles etc
• Features all stainless steel piping and 1/4 turn brass valves – limited lifetime warranty
• Units come complete with the Darley-Davey^® Two Stage High Pressure Pump: Twin impeller, gas driven Honda or Briggs & Stratton OHV Vanguard engine pump powered by a manual recoil 6.5 HP (or upgrade to an electric start 9 or 13 HP) able to self-prime to 19′; Nitrile rubber seal & casing “O” rings; Low oil protection; One Year Pump Warranty; Two Year Engine Warranty
• Comes with 2 gated 1-1/2″ discharges 1 to side 1 to rear; 1 gated 1″ pump to tank refill; 1 gated 1″ to booster reel; 1 gated 1-1/2″ auxiliary suction; 1 gated 1-1/2″ tank to pump – all NST threads
• 6.5 HP Darley-Davey Pump
  • 6.5 HP pump flows: 65 GPM @ 48 PSI, 50 GPM @ 81 PSI, 20 GPM @ 120 PSI
• Available 9 HP or 13 HP Davey Pump Upgrade
  • 9 HP pump flows: 120 GPM @ 36 PSI, 95 GPM @ 83 PSI, 60 GPM @ 118 PSI, 20 GPM @ 144 PSI
  • 13 HP pump flows: 120 GPM @ 40 PSI, 95 GPM @ 108 PSI, 60 GPM @ 133 PSI, 20 GPM @ 146 PSI
• Available Darley Pump Upgrade
  • 1.5 AGE 13 HX Darley pump flows: 120 GPM @ 60 PSI, 100 GPM @ 85 PSI, 23 GPM @ 225 PSI
• 125 gallon poly water tank with integrated 5 gallon foam cell all baffled to NFPA specs – limited lifetime warranty
• 5 gallon foam cell
• Pre-connected F4000 Series Hannay Electric Reel® with 100′ of 3/4″ or 50′ of 1″ Boostlite Hose with wildland adjustable fog nozzle
• Scotty Through-the-Pump Class A Foam System
• Integrated water tank sight gauges; 1 for water, 1 for foam
• 2- 48″ x 1″ stainless steel grab rails at rescue area for mounting a stokes basket or long board
• 10- 24″ long Velcro D Loop Straps Included
• Adapter to refill water backpacks in the field without starting pump
• Reinforced skid plate bottom for fork lifts
• Mercedes Draftlite Kit – includes Hydro-Wick Hand Primer installed on skid; 20’ of 1.5” suction hose; Foot Valve / Strainer

Add-On Options

Add rear attack line tray (dead lay) to hold approximately 150’ of 1.5” line for the length of the unit. One long tool holder box length of skid unit with a full length door opening to the side of the unit (off passenger side) for easy access.

Add a 4’ rear attack line tray (pre-connect) to hold booster line and one open toolbox holder to carry long tools with holder for long board on passenger side of skid unit.

*Optional high roller also shown

Add custom built rear attack line tray (pre-connect) the length of the skid unit to hold approximately 150’ of 1.5” line. Second rear attack line tray (dead lay) length of the bed to hold approximately 150’ of 2.5” line.

Add rear attack line tray (pre-connect) to hold approximately 150’ of 1.5” line for the length of the unit. One long tool holder box length of skid unit with a full length door opening to the side of the unit (off passenger side) for easy access.

Add lower roller off driver’s side of truck, high roller off passenger side.
